Model
SWE-50030VS-T
Overall Height
66" (1676mm)
Working Height
38" (965mm)
Inside Width
32" (812mm)
Turntable Diameter
30" (762mm)
Load Capacity
1250 lbs. (565kg)
Water Temperature
135ºF – 194ºF (57ºC - 90ºC)
Electric Heater
3 KW *3
Wash & Skimmer Cycle Timers
0-300 Minutes
Tank Capacity
65 Gallons (245L)
Stainless Steel Pump
3.0hp (2.2kw) VERTICAL
Turntable Jog Switch
Included
Water Level Switch
Included
Low Water auto Shut-off
Included
Low Water auto fill system
Not Included
Broken heater alarm
Included
Broken heater auto shut-off
Included
Removable Tank Screen
Stainless steel
Oil Skimmer
Stainless steel
Small Parts Basket
Stainless steel
Removable Parts Tree
Stainless steel
Handle & Latch
Stainless steel
Heavy Duty Casters
Included
Door & Cabinet
2.75mm thickness SS304 Stainless steel

*Specifications Subject to Change Without Notice


SWE-50030VS-T

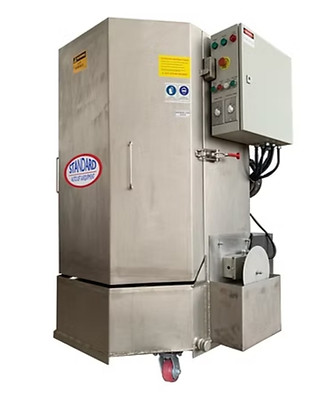

STAINLESS STEEL SPRAY WASH CABINET

3-PHASE, 200-415VAC, 50/ 60HZ



MODEL SWE-50030VS-T



2.2kw Stainless Steel Vertical Water Pump.



The all-stainless steel design* greatly improves the rust and corrosion resistance of the machine, making the service life of the spray wash cabinet longer.



  • 24V AC control panel power

  • Internal dimensions: 30” turntable; 38” job height; 1250 lbs. max weight capacity

  • Low water level alarm and automatic Shut-off protect heating elements and water pump against low water levels

  • Broken heater alarm and automatic shut-off

  • Stainless steel oil skimmer allows longer use of solution whilst changing less frequently

  • Sprocket drive that won't rob you of water pressure like water driven models can tend to do

  • Slow 4-5 rpm gives a superior, more thorough cleaning performance over water driven models

  • 2.2kw stainless steel Vertical pump that pumps a solid 68 gallons per min

  • 65 gallons insulated solution tank provides an ample supply of water for extra heavy-duty parts

  • 3 x 3 kw heating elements heating solution up to a maximum of 194F (90C) in approx. 2 hours

  • 7-day/ 24hr timer included to eliminate early morning starts for you and your staff

  • Full opening gasket free door as gaskets will often perish with long term exposure to steam

  • Stainless Steel Removable tank fine filter screen allows for quick and easy cleaning and protects the water pump

  • Optional biodegradable, non-caustic, heavy duty powdered detergent. ​



Features



  • Simple Operation

  • 0-300 Minute Automatic Timer

  • 0-300 Minute Oil Skimmer

  • Lower Water Level Sensor Alarm

  • Lower Water Automatic Shut Off

  • Turntable Jog Switch

  • Sprocket Drive Turntable

  • Stainless Steel turntable bearings

  • Stainless Steel Spray Nozzles

  • Stainless Steel Removable Fine Filter

  • Stainless Steel Removable Parts Basket

  • Stainless Steel Removable Parts Tree

  • Accommodates Engine Crane Loading

  • Gasket Free Door

  • Heavy Duty Polyurethane Casters

  • 2.2kw Stainless Steel Vertical Pump

  • 1250 lb Capacity Heavy Duty Stainless steel Turntable

  • 2.75mm thickness SS304 stainless steel cabinet and door
