Specification

Model
SWE-50030V-T
Overall Height
66" (1676mm)
Working Height
41" (1050mm) 32" (812mm)
Inside Width
32" (812mm)
Turntable Diameter
30" (762mm)
Load Capacity
1250 lbs. (568kg)
Water Temperature
135°F - 195°F (57°C - 90°C)
Pump Max Working
38 psi
Pump Max Flow
42 GPM
Electric Heater
3 X 3KW
Wash & Skimmer Cycle Timers
0-300 Minutes
Tank Capacity
65 Gallons (245L)
Turntable Jog Switch
Included
Water Level Switch
Included
Low Water Shut-off Switch
Included
Broken heater alarm & auto shut-off
Included
7 Day 24 Hour Timer
Included
Removable Tank Screen
Included
Waste Oil Recycling Container
Included
Sprocket Drive
Included
Stainless Oil Skimmer
Included
Small Parts Basket
Included
Removable Parts Tree
Included
Stainless Steel Handles
Included
Heavy Duty Casters
Included
Watertight Plug & Receptacle
Included
Water Pump
3.0hp (2.2kw)
Door
12 Gauge (0.1046 inches / 2.65mm)
Cabinet
12 Gauge (0.1046 inches / 2.65mm)
Shipping Package
46" x 46" x 73" 900 lbs. (1168mm x 1168mm x 1854mm 400kg)
Turntable Motor
90W
Oil Skimmer Motor
25W
Stainless Steel Nozzles
19
Reccomended Floor Space
44"x43" (1118mm x 1092mm)

*Specifications Subject to Change Without Notice

​


SWE-50030V-T

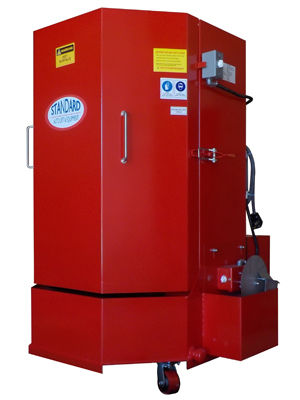

SWE-50030V-T SPRAY WASH CABINET

MODEL SWE-50030V-T

3-PHASE, 200-415VAC, 50/ 60HZ



Warranty: One (1) year parts warranty, two (2) years water pump warranty, and five (5) years cabinet warranty

Ideal for transmission and automotive repair shops, the SWE-50030V-T has all the features the professional demands. Cut-away sides at the bottom of the machine allow engine crane access to the 1250 lb. Capacity wash turntable for easy loading and unloading. A 12-gauge (0.1046”) heavy-duty steel door and cabinet construction, ease of operation, and all the great features make the SWE-50030V-T the choice for professionals.

​

Features

  • Simple Operation

  • 0-300 Minute Automatic Timer

  • Automatic Shut Off

  • Filter for Recycled Solution

  • Sprocket Drive Turntable

  • Stainless Steel Spray Nozzles

  • Removable Parts Basket

  • Removable Parts Tree

  • Accommodates Engine Crane Loading

  • Gasket Free Door

  • Heavy Duty Polyurethane Casters

  • Oil Skimmer

  • Stainless Steel Pump Impeller

  • 1250 lb Capacity Heavy Duty Turntable

  • 12 Gauge (0.1046 Inches / 2.65mm) Thickness Steel Door and Cabinet

  • Color in RED
